This is my personal endeavor to make a 3D printer. It will be used to make prototype encolsures and parts for other machines. This machine will not be for sale, it's purely for personal use. The parts I am using would be much too expensive to make this product a commercial endeavor. Feel free to use any of the ideas here in your own project. I am probably not the first one to use it anyway. Much of these images are still sketches and may not be completely indicative of the final assembly.
These little opto-interrupter modules are used in CNC or RepRap machines so the machine knows when the moving head has moved beyond its boundaries. They can also be used by the machine at startup to determine where the head is and thus move the head to the home position. In my case I use two of them per axis as limit indicators and one of them also functions to find the home position.
One of the issues with switching to opto-interrupters is that on thier own they cannot be tied together like mechanical switches and thus require more inputs on the controller or extra circuitry such as I implemented with these modules.

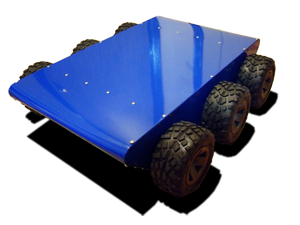

My new 6-wheeled robot platform provides a good starting point to mount an array of sensors. Though I also plan to use this base to experiment with autonomous robotic behavior, my first plan is to add a web-cam and wireless network and be able to control the robot with my iphone! The goal with the iphone is to develop as natural as possible user interface and one very unlike traditional control interfaces.
I like the idea of controlling a mobile robot with an iphone by using the iphone's accelerometers and digital compass rather than a traditional interface using buttons. The accelerometers add a more natural control interface where movement of the robot and the panning camera is controlled by moving the iphone by changing yaw, pitch and roll. The iphone, and similar emerging devices, are changing the way we interact with the traditionally flat digital realm and instead augmenting reality --- yes, wiki Augmented Reality!
Preliminary schematics and PCB artwork are completed for an 400K gate FPGA board capable of running Linux. Features inclu de 8Mb Flash, 32MB SRAM, sound codec, SD Slot and USB. I have completed the schematics and PCB routing but I have not yet tested the design beyond some spice modeling.
I have designed for a few projects I am planning and will also be part of the Your First CPU project for implementing and testing the custom soft processor core and ucLinux.
There are four cycles in our previous CPU design, Fetch, Decode, Execute and Store (aka 'Write back'). In our current cpu design these 4 cycles are performed one at a time, thus our CPU executes an instruction from memory for every 4 cycles of the CPU clock. With a few changes we can increase our performance substantially to almost achieve a single instruction per clock cycle.
I figured out a way (after hearing some rumors it was possible) to through plate vias and thru holes using a liquid from a "car defroster repair kit" sold by permatex.com. I found it at Advanced Auto Parts for the cost of about 10$ US. You can also use "Silver Print" made by MG Chemicals (see update below).
My pcb had 10 mil traces and via holes using a #72 drill. Many of the vias worked. Normal through holes like 2.54mm headers also worked, even some large holes worked. Typically the through holes were the best as they were big enough to clear the liquid through without getting clogged. However, with the vacuum table, it should suck the #72 vias fine.
My CNC Mill is finally completed after about 9 months of obsessive effort. I have already milled a few parts for a second CNC machine, a plastic doggy bone and a few PCBs have been drilled and routed. The plastic doggy bone was only 1 x 1/3 inches but the detail was fantastic!
The accuracy exceeds the measurability of my digital caliper (1/2mil resolution) so I am quite impressed with the results! So far, I am limiting my materials to plastic, machinable wax and Butterboard(tm) but will cut some aluminum shortly.
I have included some details on the construction with a few pictures.
An example of a front panel interface for a digital audio recorder using a Xilinx XC9572XL CPLD interfaced with an Atmel AVR32AP7001 with the NGW100 Eval Kit. The CPLD provides "time multiplexed" sequencing for a 6 digit 7-segment LED display, 8 status LEDs, and detects input from 7 key switches generating a CPU interrupt on a key press or release. The CPLD interfaces with the AVR32AP using a simple 4-bit multiplexed bus. This provides a good example of designing a front panel interface that relieves the duty from the host CPU -- no polling!
